Descend Series DN12
Ultra-Performance, 1500W 12" Subwoofer with Dual 12" Bass Radiators
Loaded with custom technologies such as 3XR™ Architecture and Intelligent Phase Control™, the DN12 delivers extraordinary bass into any system.
3XR™ Architecture More Bass from the Same Space
The DN12’s unique 3XR Architecture provides triple the bass-producing surface area of a traditional 12” ported subwoofer. This extra surface area moves more air, resulting in massive low end. And because 3XR doesn’t use ports, it also provides crystal-clear sound with no port noise distortion.
3XR™ Architecture for as much bass as a ported 15” subwoofers
The DN12’s 3XR Architecture provides triple the bass-producing radiating surface area of a traditional 15” ported subwoofer. This extra surface area moves more air, enabling the DN12 to play as loud and low as a two similarly-sized 18” ported subwoofers. And because 3XR doesn’t use ports, DN12 also provides crystal-clear bass with no port noise distortion.
Passive Radiators for louder, lower, cleaner bass
As the core technology behind Descend’s 3XR Architecure, its passive bass radiators enable the DN12 to play as loud and low as a 15” ported sub without unwanted port noise distortion. Passive radiators also deliver a smooth frequency response like a sealed sub, but with the port-like ability to play louder and lower in a smaller enclosure.
What you get is the best of both worlds: louder, clearer bass than a ported sub from a smaller enclosure than a sealed sub.
Powered by Class H digital amplification, and with an advanced 56-bit DSP that includes three custom EQ modes, DN12 plays exceptionally impactful bass down to 25Hz.
Custom Class H Digital Amplification
for powerful, clean performance down to25Hz
The DN12’s advanced 1500W peak Class H digital amplifier delivers continuous power to cleanly reproduce sustained bass below 25Hz. With real-time monitoring and adjustments to the sliding rail voltage, the DN12 delivers considerably higher power during short, transient peaks such as bass drum kicks and on-screen artillery blasts.
Advanced 56-Bit DSP for distortion-free longevity
The advanced 56-bit Digital Signal Processor (DSP) extends and improves the DN12’s bass response. The DSP tightly monitors and controls the woofer system to prevent distortion and woofer damage at ultra-high volumes with a minimum of audible artifacts.
Built-in EQ Modes for the right sound every time
With three built-in performance EQs modes, the DN12 can be optimized to your room and listening preferences, and adjusted to match whatever you’re listening to.
- Flat Mode
The DN12’s default setting out of the box, Flat Mode provides the most balanced performance, as determined by our acoustic experts, providing the perfect harmony between low end extension and full spectrum maximum output.
- Deep Mode
Deep Mode provides additional low-end output but sacrifices some maximum SPL to do so. This makes Deep Mode excellent for music, where frequency range is so critical, so instruments like a pipe organ or an upright bass are fully and evenly reproduced.
- Loud Mode
The opposite of Deep Mode, Loud Mode sacrifices some low-end output while gaining output in all other frequencies. Loud Mode is excellent for home theater, to most impactfully accentuate explosions and other special audio effects.
Control and Customization
With breakthrough technologies such as Intelligent Phase Control™, easy settings management with its dedicated remote control, and advanced custom integration capabilities, the DN12 is easily optimized to the specifics of your system.
Intelligent Phase Control™ for flawless system blending
Intelligent Phase Control™ provides a full 360 degrees of customizable phase adjustment, always centered around the settings of the low-pass filter. This provides the ability to tune the subwoofer for minimal group delay between speakers and a flawless blending experience between your speakers and the subwoofer.
Intelligent Phase Control is available in the Descend DN12 and DN15 subwoofers.
Remote Control with On-sub LED Display for adjustments on the fly
Easily adjust the DN12’s volume level, phase, and EQ with its slim remote control. There’s no need to constantly get up to manually change settings or wonder if you’ve gotten them right.
Multiple Subwoofers for smoother bass throughout the room
While a single subwoofer can add bass and enhanced realism to any system, it may not provide consistent frequency response throughout the room.
When two or more subwoofers are properly employed throughout the room, sound waves disperse more evenly, flattening the frequency response. The result is smoother bass throughout the room, helping to eliminate boomy locations or dead spots.
Custom Integration Ready for complete controllability
With both12V input and IR pass-through, you have the ability to pair the subwoofer with most control systems and place the subwoofer wherever you want in the room and still experience full functionality.
Definitive Technology Descend DN12 12" Subwoofer
Design : 12" Long-Throw woofer
Passive Radiators : Dual 12" 3XR™ Configuration
Bass Type : Bass Radiator
Amplifier Type : Class H
Peak Power : 1,500 Watts
Continuous (RMS) : 500 Watts
Frequency Response (±3 dB) : 25 Hz – 150 Hz
Low-Pass Crossover Frequency : 40 Hz – 120 Hz
Phase Adjustment : -135 to 180 degrees (by 45 degree increments)

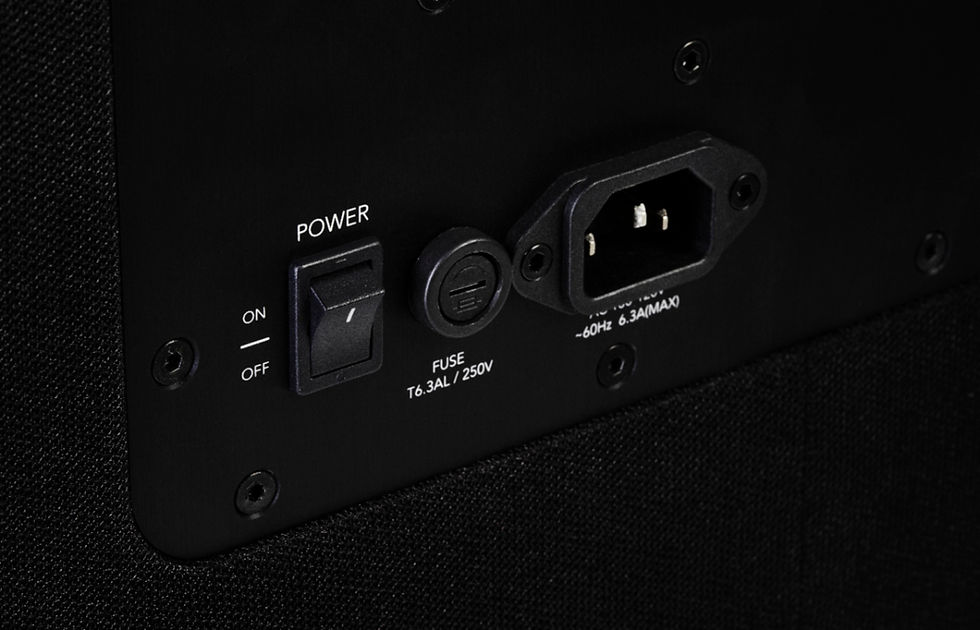

Power Supply : Internal IEC 3 prong Jack 120V / 240V switch
LFE : Single RCA
Speaker : Left/Right 5-Way Binding Posts
Main Power On/Off Volume Control + / - / Mute Buttons Low Pass Control + / - Buttons Phase Control Toggle Button Status RGB LED Yes
Dimensions (includes feet) : 20.5"H x 19.0"W x 19.8"D
Product Weight : 73.1 Lbs.
Colors : Midnight Black
What's in the Box : Subwoofer, Slim Remote Control (batteries included), Power Cord and Quick Start Guide.
Specifications are subject to change without notice
3XR™ Architecture : for shockingly loud, clear, deep bass
Intelligent Phase Control™ : for seamless system blending
1500W Peak Class H Digital Amplifier : for pure power
Plays as Low as 25Hz : for deep impact in any system
Advanced 56-Bit DSP : for artifact-free bass extension
12" Driver and Dual 12" Bass Radiators : for maximum bass performance
Remote with Display : for easy, responsive tuning
