Two-Channel Revolution.
The STR Power Amplifier is the beating heart of a world-class 2-channel sound system. It delivers massive power generation, with audiophile-quality output in a smartly designed component.
Designed, engineered, and Crafted in Canada, the STR Power Amplifier delivers 400 Watts/channel into 8 ohms with both channels driven, a massive 600 Watts/channel into 4 ohms (both channels driven) and 800W in 2 ohms, for true no-holds-barred performance.
Inside, the STR Power Amplifier uses two colossal transformers and multiple high-current output devices so the most subtle details and dynamic peaks are handled equally well. Outside, its beautifully designed cosmetics, including a 7-inch graphic control display and secure, highly conductive audiophile connectors provide a perfect match to the STR Preamplifier.
Features & Functions
- 400W / 600W / 800W into 8 / 4 / 2 ohms
- Cascoded complementary feedback input stage
- Sixteen bipolar output devices per channel
- Dual Mono Design
- Massive toroidal transformers
- Soft turn-on
- Four power on/off options
- No rail fuses
- Advanced Load Monitoring™ Technology
- Graphic front panel display for the power meter, status, and easy setup navigation
- Available in Silver and Black Finishes
- Crafted in Canada

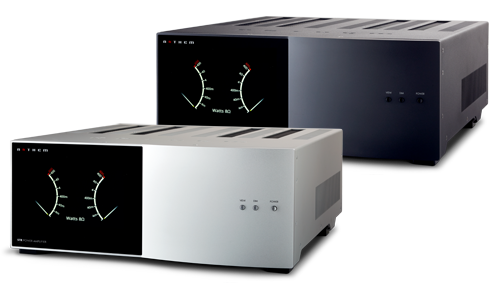

Anthem STR Power Amplifier
STR Power Amplifier
Output (per channel, continuous, 20 Hz - 20 kHz, <1% THD)
400 Watts 8 Ω
600 Watts 4 Ω
800 Watts* 2 ΩTotal Harmonic Distortion (THD) at 400 W
0.0007% (at 1 kHz)
0.004% (at 20 kHz)IMD at 300 W
0.0006% AT ITU-R (19 kHz + 20 kHz)
0.0016% at SMPTE (60 Hz + 7 kHz)SNR, IEC-A, ref. 400W, 121dB
Frequency Response, 20 Hz to 20 kHz, ± 0.1 dB
Power Bandwidth, -3 dB at 400W into 8 ohms, 91 kHz
Slew Rate: 30 V/μs
Damping Factor (20 Hz to 1 kHz), 360
Channel Separation 101 dB (100 Hz), 98 dB (10 kHz)
Input Impedance 10 kΩ (RCA), 15 kΩ (XLR)
Input Sensitivity (for 400 W into 8 Ω), 2.1 Vrms
Voltage Gain: 29dB
Power Requirement
120V version: In countries where the line voltage is 120V, this product operates from a single phase AC power source that supplies between 108V - 132V at a frequency of 60 Hz.
220V-240V version: In countries where the line voltage is 220V, 230V, or 240V, this product operates from a single phase AC power source that supplies between 198V and 264V at a frequency of 50 Hz.
Power Consumption
Standby: 310 mW
Idle: 65 W
Typical Playback Levels: 150 W - 300 W
High Playback Levels: 600 W - 1100 WDimensions
6-3/4"H x 17"W x 18-1/2"D (not including power cord)
Weight : 60 Lbs
*Maximum 3 seconds due to high current draw.
Specifications are subject to change without notice
